Macbooks

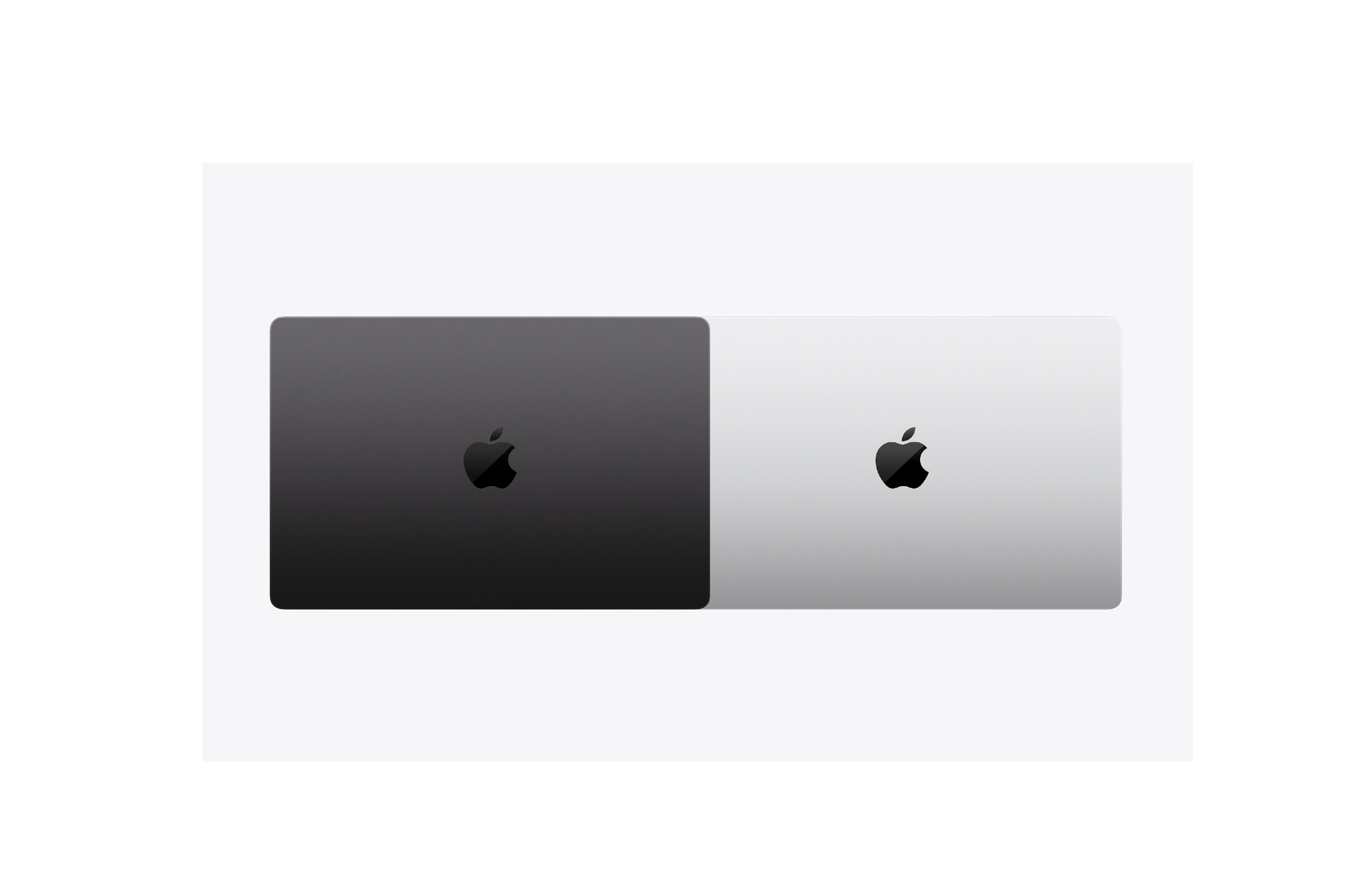

Finish

• Space Black

• Silver

Chip

Apple M5 Pro chip

• 18-core CPU with 6 super cores and 12 performance cores

• 20-core GPU

• Neural Accelerators

• Hardware-accelerated ray tracing

• 16-core Neural Engine

• 307GB/s memory bandwidth

Media Engine

• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

• Video decode engine

• Video encode engine

• ProRes encode and decode engine

• AV1 decode

Configurable to:

• M5 Max with 18-core CPU and 32-core GPU (460GB/s memory bandwidth) or M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)

Apple M5 Max chip

• 18-core CPU with 6 super cores and 12 performance cores

• 32-core GPU, 40-core GPU

• Neural Accelerators

• Hardware-accelerated ray tracing

• 16-core Neural Engine

• 460GB/s memory bandwidth, 614GB/s memory bandwidth

Media Engine

• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

• Video decode engine

• Two video encode engines

• Two ProRes encode and decode engines

• AV1 decode

Configurable to:

• M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)

Memory

Apple M5 Pro chip

• 24GB unified memory

Storage¹

Apple M5 Pro chip

• 1TB SSD

Display

Liquid Retina XDR display

• 16.2-inch (diagonal) Liquid Retina XDR display;² 3456-by-2234 native resolution at 254 pixels per inch

XDR (Extreme Dynamic Range)

• 1,000,000:1 contrast ratio

• XDR brightness: 1000 nits sustained full-screen, 1600 nits peak³ (HDR content only)

• SDR brightness: up to 1000 nits (outdoor)

Color

• 1 billion colors

• Wide color (P3)

• True Tone technology

Refresh rates

• ProMotion technology for adaptive refresh rates up to 120Hz

• Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz

Configurable with:

• Nano-texture display

Battery and Power¹⁶

M5 Pro

• Up to 24 hours video streaming

• Up to 17 hours wireless web

• 100-watt-hour lithium-polymer battery¹⁶

• 140W USB-C Power Adapter

• USB-C to MagSafe 3 Cable (2 m)

• Fast-charge capable with 140W or higher USB PD power source

M5 Max

• Up to 22 hours video streaming

• Up to 16 hours wireless web

• 100-watt-hour lithium-polymer battery¹⁶

• 140W USB-C Power Adapter

• USB-C to MagSafe 3 Cable (2 m)

• Fast-charge capable with 140W or higher USB PD power source

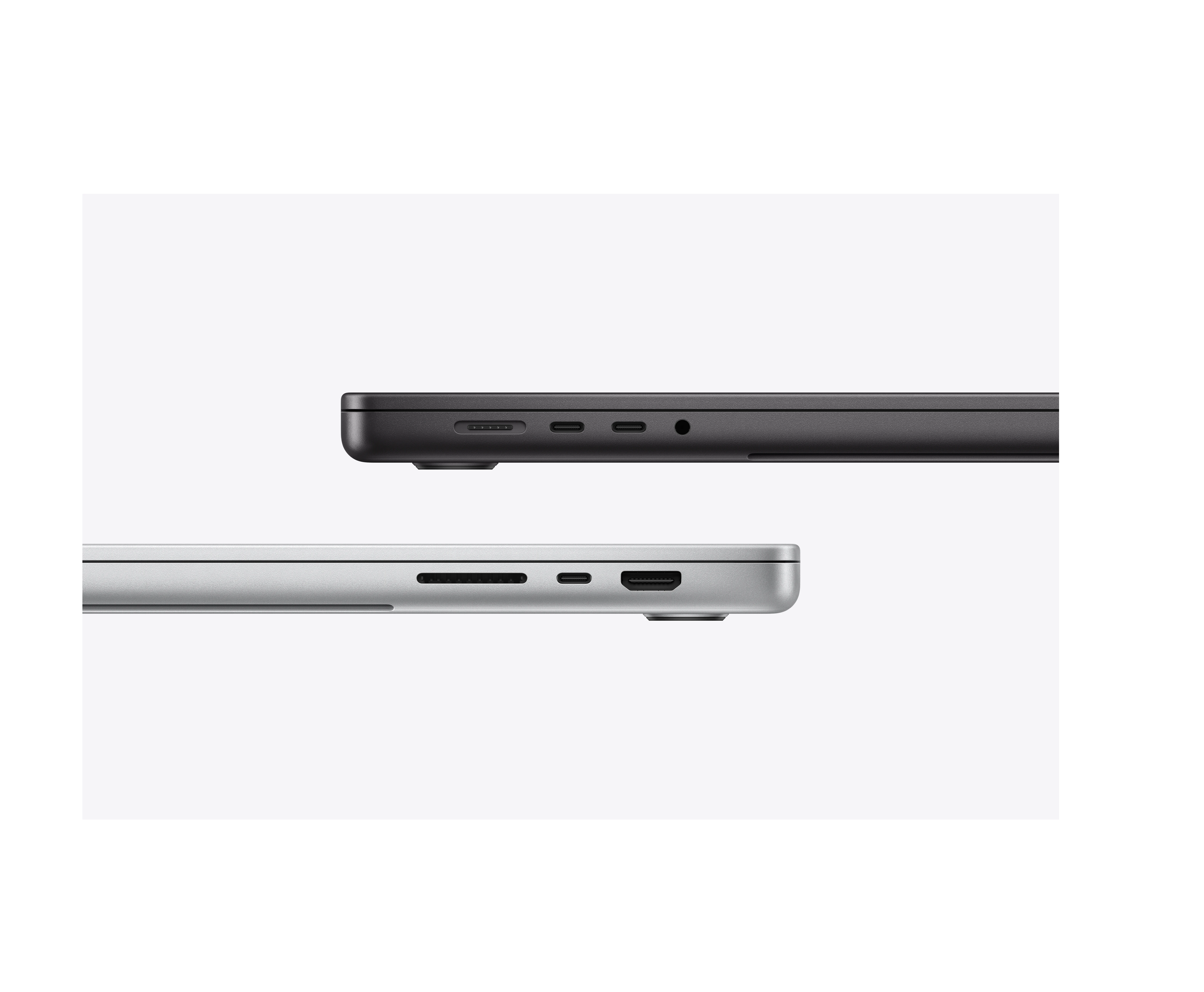

Charging and Expansion

• SDXC card slot

• HDMI port

• 3.5 mm headphone jack

• MagSafe 3 port

• Three Thunderbolt 5 (USB-C) ports with support for:

• Charging

• DisplayPort

• Thunderbolt 5 (up to 120Gb/s)

• USB 4 (up to 120Gb/s)

External Display Support

M5 Pro

• Supports up to three external displays over any combination of Thunderbolt and HDMI ports:

• Three displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or

• One display up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz plus a second display up to a native resolution of 5K at 120Hz or 4K at 200Hz

• Supports up to three external displays over a single Thunderbolt port

• Simultaneously supports the built-in display at full native resolution

M5 Max

• Supports up to four external displays over any combination of Thunderbolt and HDMI ports:

• Four displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or

• Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz

• Supports up to four external displays over a single Thunderbolt port

• Simultaneously supports the built-in display at full native resolution

• Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds

Video Playback

• Supported formats include HEVC, H.264, AV1, and ProRes

• HDR with Dolby Vision, HDR10+/HDR10, and HLG

Audio Playback

Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos

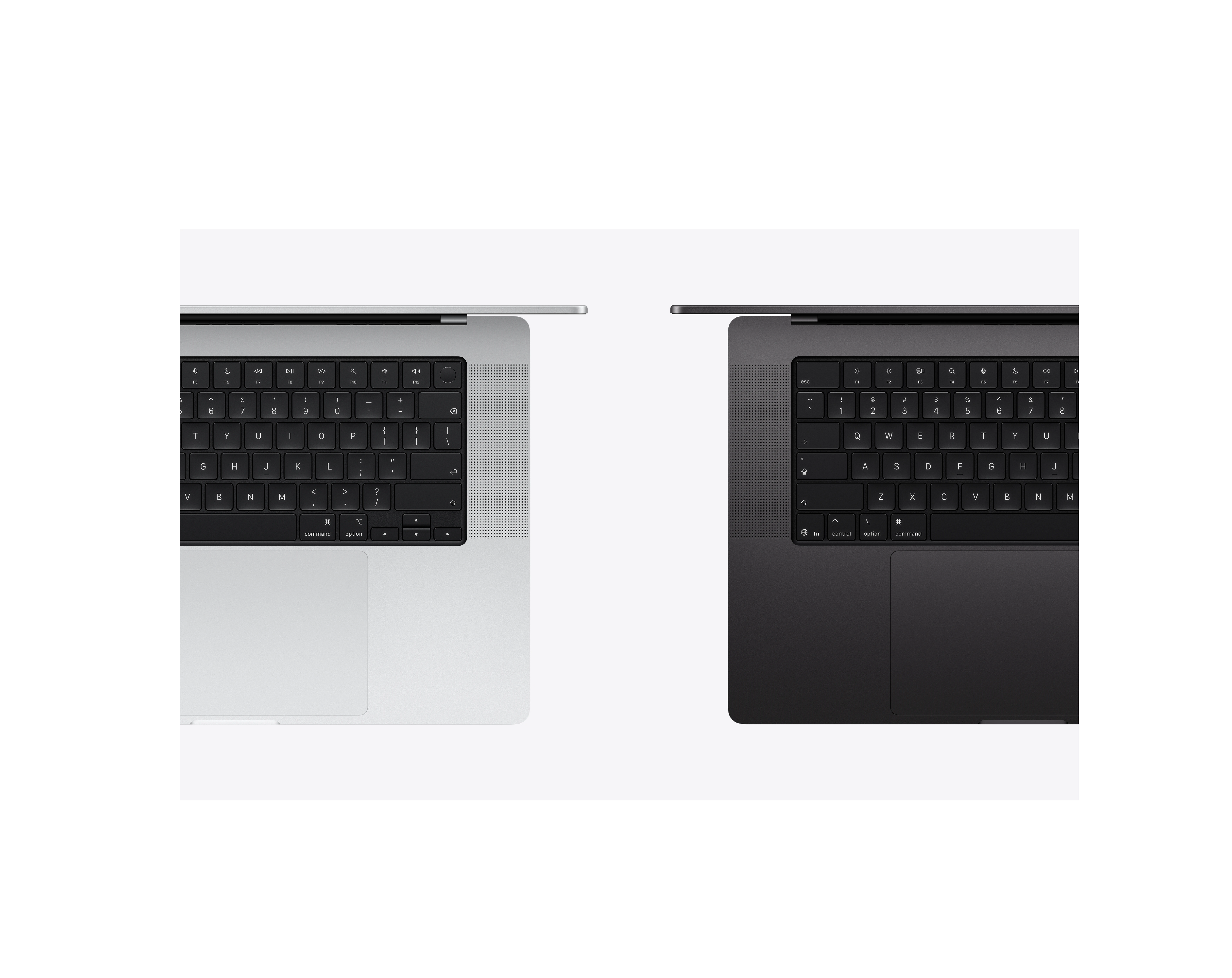

Keyboard and Trackpad

Backlit Magic Keyboard with:

• 78 (ANSI) or 79 (ISO) keys including 12 full-height function keys

• Touch ID

• Ambient light sensor

• Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures

Wireless

Apple N1 wireless networking chip

• Wi-Fi 7 (802.11be)⁴

• Bluetooth 6

• Thread networking technology

Camera

• 12MP Center Stage camera with support for Desk View

• 1080p HD video recording

• Advanced image signal processor with computational video

Audio

• High-fidelity six-speaker sound system with force-cancelling woofers

• Wide stereo sound

• Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers

• Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro, and AirPods Max⁵

• Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming

• Voice Isolation and Wide Spectrum microphone modes for enhanced voice clarity in audio and video calls

• 3.5 mm headphone jack with advanced support for high-impedance headphones

• HDMI port supports multichannel audio output

Operating Requirements

• Line voltage: 100V to 240V AC

• Frequency: 50Hz to 60Hz

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: –13° to 113° F (–25° to 45° C)

• Relative humidity: 0% to 90% noncondensing

• Operating altitude: tested up to 10,000 feet (3000 meters)

• Maximum storage altitude: 15,000 feet

• Maximum shipping altitude: 35,000 feet

Size and Weight

• Height: 0.66 inch (1.68 cm)

• Width: 14.01 inches (35.57 cm)

• Depth: 9.77 inches (24.81 cm)

• Weight (M5 Pro): 4.7 pounds (2.14 kg)⁶

• Weight (M5 Max): 4.7 pounds (2.15 kg)⁶

Operating System

macOS

macOS is the world’s most advanced desktop operating system. It includes easy-to-use and powerful features that help you be more productive and creative, Apple Intelligence, and seamless ways to use iPhone with Mac.

Apple Intelligence⁷

Apple Intelligence is the personal intelligence system that helps you write, express yourself, and get things done effortlessly. With groundbreaking privacy protections, it gives you peace of mind that no one else can access your data — not even Apple.

Accessibility

Accessibility features help people with disabilities get the most out of their new MacBook Pro. With built-in support for vision, hearing, mobility, and learning, you can create and do amazing things.

Features include:

• VoiceOver

• Zoom

• Motion, display, and text settings

• Accessibility Reader

• Voice Control

• Switch Control

• Closed Captions

• Live Captions

• Personal Voice and Live Speech

Built-in Apps⁸

• App Store

• Books

• Calendar

• Contacts

• FaceTime

• Find My

• Freeform

• Games

• GarageBand

• Home

• iMovie

• iPhone Mirroring

• Journal

• Keynote

• Mail

• Maps

• Messages

• Music

• News

• Notes

• Numbers

• Pages

• Passwords

• Phone

• Photo Booth

• Photos

• Podcasts

• Preview

• QuickTime Player

• Reminders

• Safari

• Shortcuts

• Stocks

• Time Machine

• Tips

• TV

• Voice Memos

• Weather

In the Box

• 16-inch MacBook Pro

• 140W USB-C Power Adapter

• USB-C to MagSafe 3 Cable (2 m)

• Polishing cloth (only with nano-texture display option)
