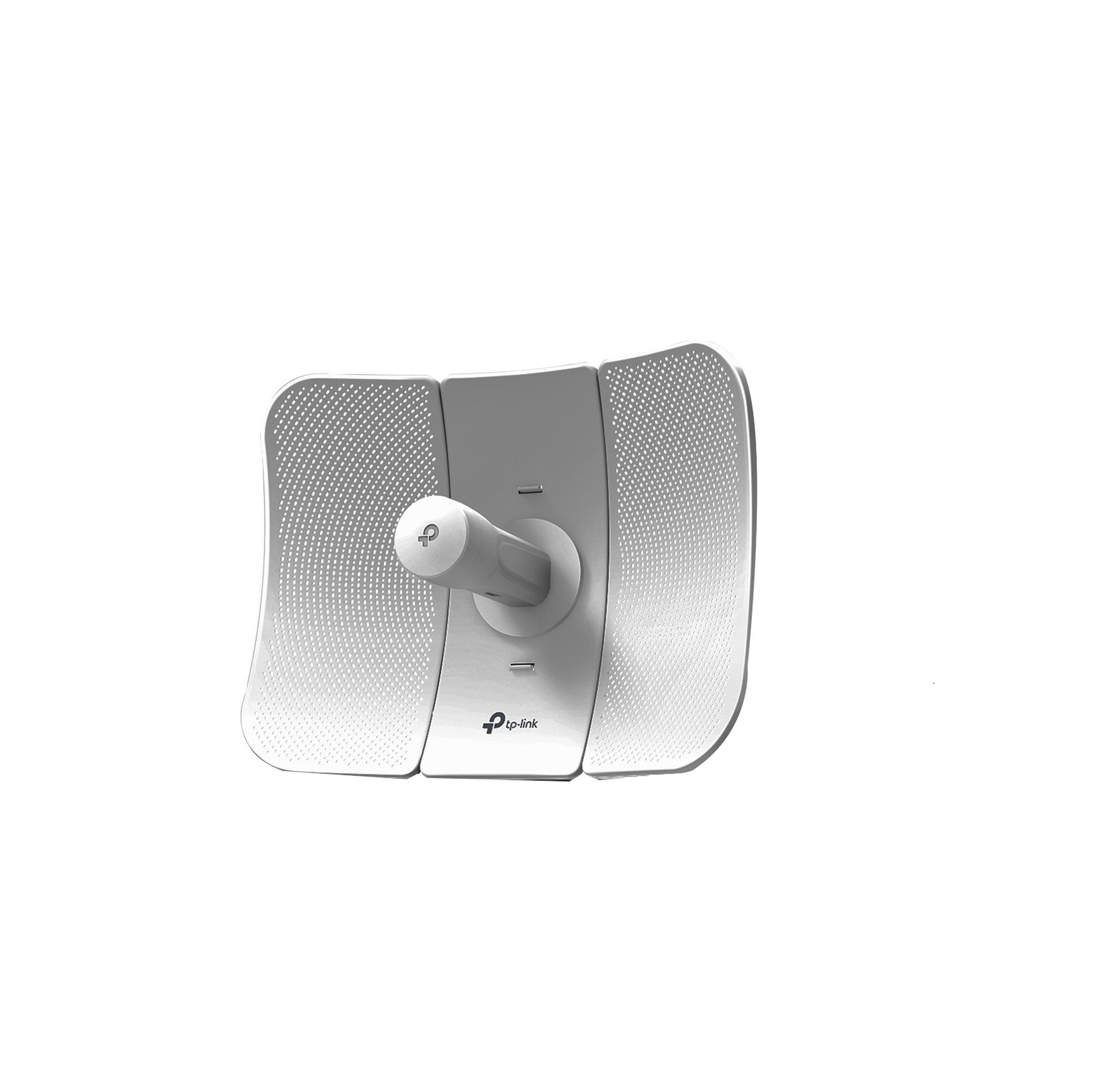

TP-Link CPE710, 5GHz AC 867Mbps Long Range Gigabit Outdoor CPE for PtP and PtMP Transmission

TP-Link CPE710 5GHz AC 867Mbps Long Range Gigabit Outdoor CPE

Key Features:

• AC867Mbps Ultra-Fast Wireless Speed for Islamabad: Achieves up to 867Mbps wireless data rates on the 5GHz band (802.11ac), offering 3x faster speeds than 802.11n Wi-Fi, perfect for bandwidth-intensive applications in Islamabad.


• Professional 23dBi Directional Antenna for Long Range in Islamabad: Equipped with a high-gain 23dBi 2x2 dual-polarized directional Cassegrain antenna and a dedicated metal reflector, ensuring excellent beam directivity, reduced interference, improved latency, and superior noise immunity for long-distance links throughout Islamabad.


• Gigabit Ethernet Port for High Throughput in Islamabad: Features a 10/100/1000 Mbps shielded Ethernet port, ensuring that the wired backhaul can fully support the high wireless speeds of 802.11ac, crucial for demanding network environments in Islamabad.
• Long-Range Wireless Transmission (30km+) for Islamabad: Designed to establish stable wireless connections over distances exceeding 30km in tested field conditions, making it an excellent choice for connecting remote sites or extending networks over vast areas in Islamabad.
• Pharos MAXtream TDMA Technology for Enhanced Performance in Islamabad: Employs TP-Link's proprietary Time-Division-Multiple-Access (TDMA) technology, which significantly improves network throughput, capacity, and latency performance, especially vital in PtMP networks with multiple clients in Islamabad.


• Robust IP65 Weatherproof Enclosure for Islamabad Climate: Built with a durable, IP65 water and dust-proof outdoor PC stabilized plastic material, combined with 15KV ESD Protection and 6KV Lightning Protection, guaranteeing reliable operation against severe weather conditions and electrical surges in Islamabad.


• Passive PoE (Power over Ethernet) for Flexible Deployment in Islamabad: Powered conveniently via Passive PoE (24V 0.5A PoE Adapter included), allowing flexible installation up to 60 meters (200 feet) away from a power source, simplifying deployment across Islamabad.


• Easy Assembly and Flexible Installation for Islamabad: Innovative snap-lock parts facilitate fast and simple assembly. Pole mounting kits and three-axis alignment capability allow for flexible installation to achieve optimal signal direction and maintain stability, even in windy conditions in Islamabad.


• Centralized Management System (Pharos Control) for Islamabad Network: Comes with TP-Link's Pharos Control, a free, intuitive centralized management software. This enables administrators to easily discover, configure, monitor, and maintain all Pharos devices within their network from a single PC in Islamabad.
• Multiple Operation Modes for Diverse Applications in Islamabad: Supports various operating modes including AP, Client, Bridge, Repeater, AP Router, and AP Client Router (WISP), offering great versatility for diverse network deployment requirements in Islamabad.



Technical Specifications:

• Processor: Qualcomm 750MHz CPU, MIPS 74Kc


• Memory: 128 MB DDR2 RAM, 16 MB Flash
• Interface: 1 × 10/100/1000 Mbps Shielded Ethernet Port (LAN/PoE), 1 × Reset Button


• Power Supply: Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)


  • Voltage range: 16-27V DC (24V 0.5A Passive PoE Adapter included)
• Max. Power Consumption: 7.41 W
• Dimensions (W x D x H): 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) - Assembled unit
• Antenna Gain: 23dBi


• Antenna Beamwidth: 9° (Azimuth)/7° (Elevation)
• Protection: 15KV ESD Protection, 6KV Lightning Protection


• Enclosure: Outdoor PC stabilized plastic material, IP65 water and dust proof design
• Wireless Standards: IEEE 802.11a/n/ac
• Frequency: 5.15~5.85GHz (Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used in Islamabad.)
• Wireless Speeds:
  • Up to 867 Mbps (80 MHz, Dynamic)
  • Up to 400 Mbps (40 MHz, Dynamic)
  • Up to 173.4 Mbps (20 MHz, Dynamic)


• Transmission Power: Max. 27 dBm (Adjustable power by 1dBm)
• Wireless Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption


• Management: Discovery and Remote Management via Pharos Control application, HTTP/HTTPS Web-based management


• System Tools: Throughput Monitor, Spectrum Analyzer, Speed Test, Ping, Traceroute, Antenna Alignment, etc.
• System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, 8, 10, 11, MAC OS, NetWare, UNIX or Linux. (Recommended Web Browsers: Google Chrome, Safari, and Firefox. IE browsers are not recommended.)

• Environment:
  • Operating Temperature: -40℃~70℃ (-40℉~158℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing


  • Storage Humidity: 5%~95% non-condensing

Package Contents (Typical):

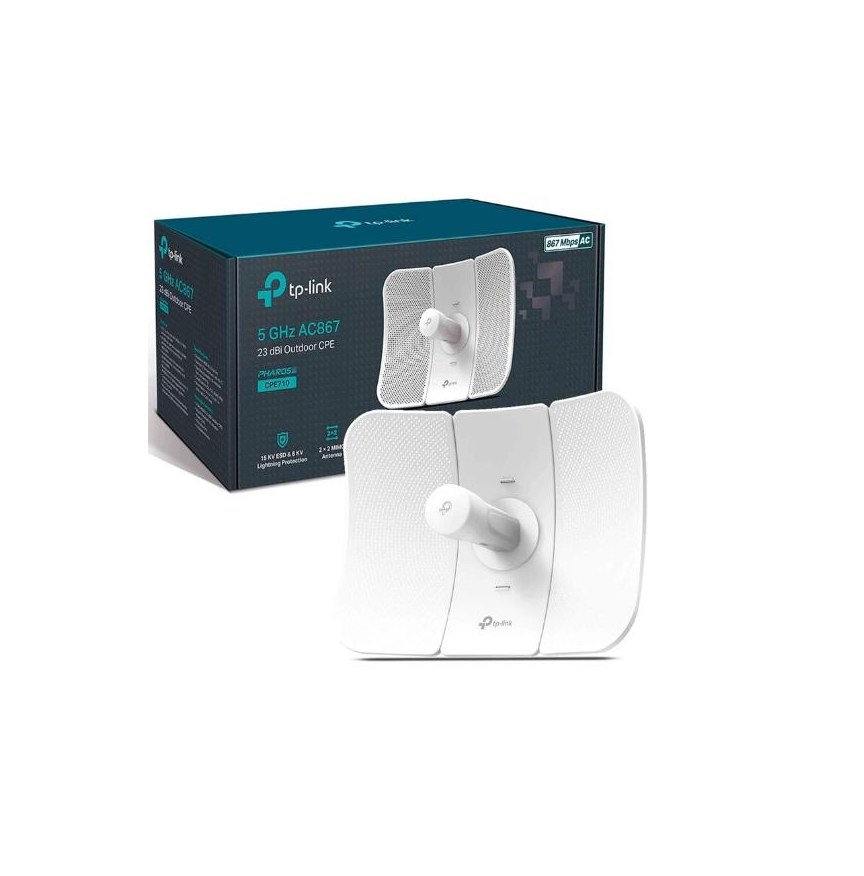

• TP-Link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE


• 24V 0.5A Passive PoE Adapter


• Pole Mounting Straps
• AC Power Cord
• Installation Guide
