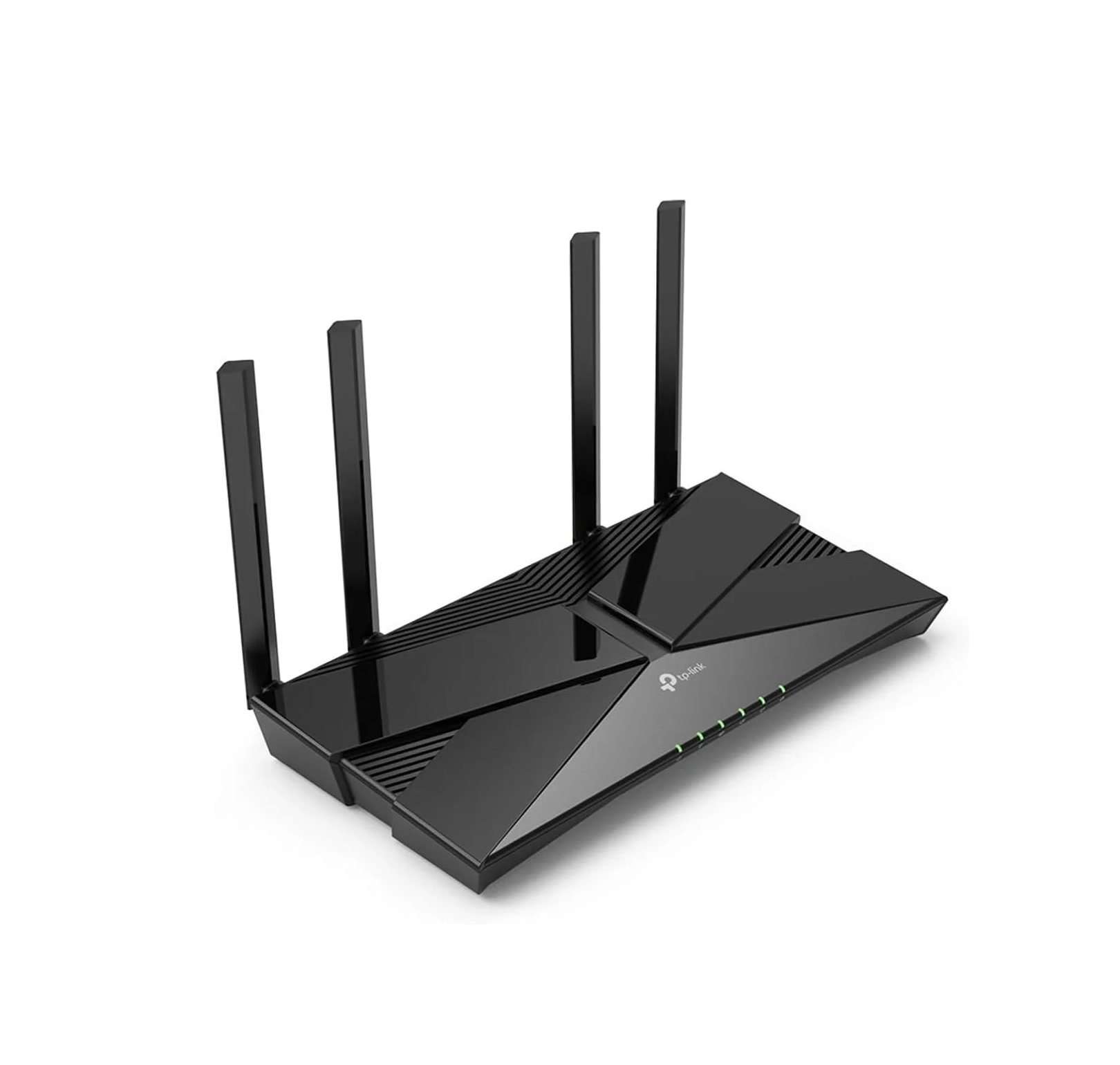

TP-Link XX230v AX1800 Dual Band Wi-Fi 6 GPON Router

The TP-Link XX230V AX1800 is a wireless VoIP GPON router that supports dual-band Wi-Fi 6, providing speeds of up to 1.8 Gbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz). It includes full Gigabit ports and a USB 2.0 port to enhance connectivity options for users.

• Next-Gen 1.8 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with WiFi speeds up to 1.8 Gbps across two bands.
• Boosted Coverage: Four high-performance antennas and Beamforming technology combine to extend strong, reliable WiFi throughout your home.
• More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.
• EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.
• Gigabit Wired Connections: 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access.
• VoIP Calls: Support multiple VoIP accounts and various call features to surpass traditional landlines.
• Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
• Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experiences.
• Compact Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking.
• Easy Setup and Use: Set up your network in minutes with the powerful Aginet app.
• Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

Hardware Features

• External Power Supply: 12V/1.5A

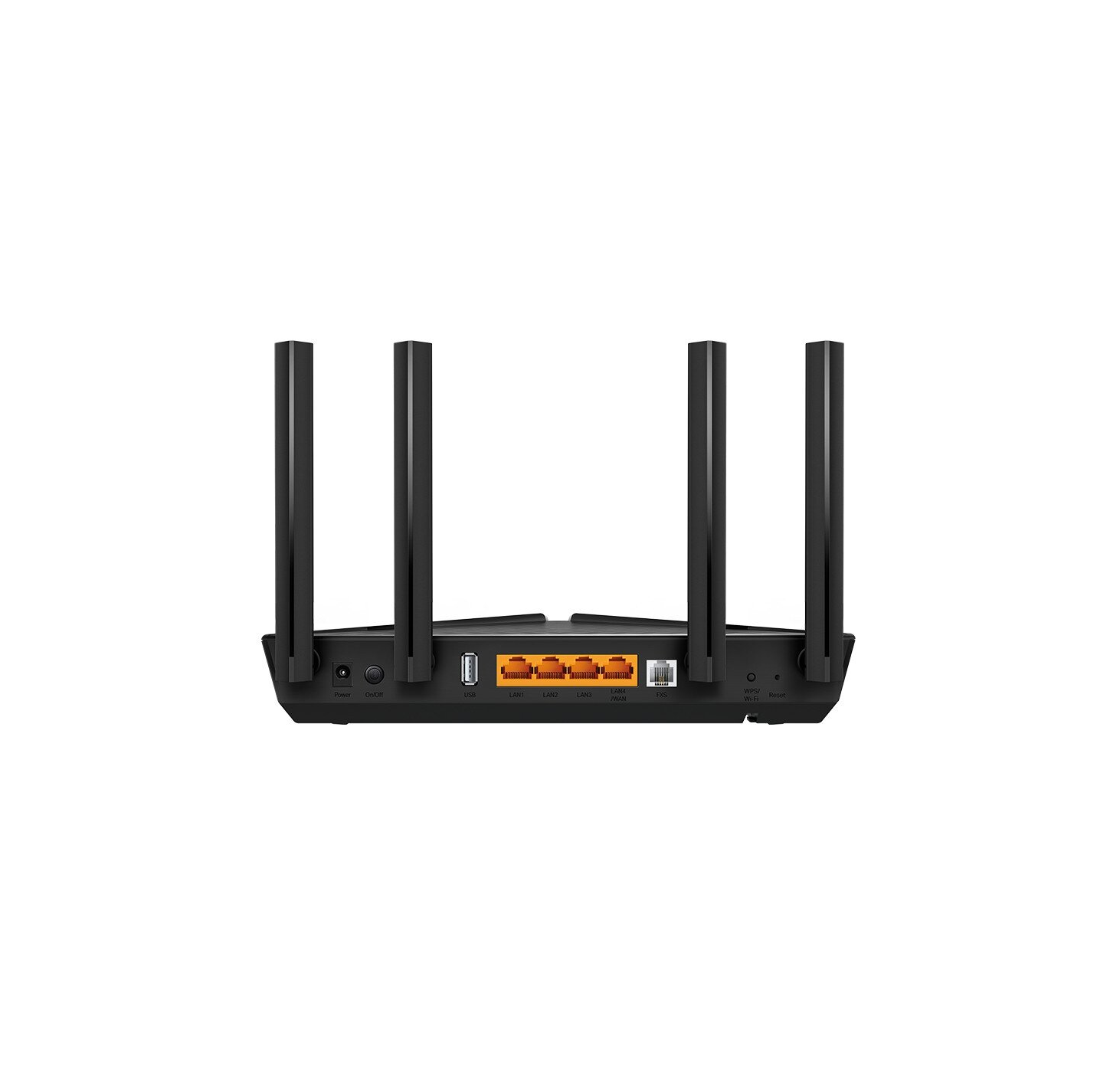

• Interface:
  • 1 × SC/APC GPON Port
  • 1 × 10/100/1000 Mbps WAN/LAN Port
  • 3 × 10/100/1000 Mbps LAN Ports
  • 1 × FXS Port
  • 1 × USB 2.0 Port
• Buttons:
  • WPS/Wi-Fi Button
  • RESET Button
  • Power On/Off Button
• Antenna: 4 External Antennas
• Data Rates:
  • Downstream Speeds: 2.488 Gbps (GPON)
  • Upstream Speeds: 1.244 Gbps (GPON)

Wireless Features

• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: AX1800
  • 5 GHz: Up to 1201 Mbps (HE80)
  • 2.4 GHz: Up to 574 Mbps (HE40)*
• Transmit Power:
  • CE: <20 dBm (2.4 GHz)
  • CE: <23 dBm (5 GHz)
• Wireless Functions:
  • Enable/Disable Wireless Radio
  • WMM
  • Wireless Statistics
• Wireless Security: WPA/WPA2/WPA3 Encryption
• Wireless Standards:
  • IEEE 802.11a/n/ac/ax (5 GHz)
  • IEEE 802.11b/g/n/ax (2.4 GHz)
• Multi-SSID:
  • 2 × 5 GHz Multi-SSID
  • 2 × 2.4 GHz Multi-SSID
• Wireless Schedule: Support for 2.4 GHz and 5 GHz Wireless Schedule
• Mesh Technology: EasyMesh Compatible, supports 802.11k/v/r

Software Features

• DHCP:
  • Server, Client
  • DHCP Client List
  • Address Reservation
  • DHCP Relay
• Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
• Quality of Service: Hardware QoS, Flow Classification
• Dynamic DNS: DynDns, NO-IP
• VPN Pass-Through: PPTP, L2TP, IPSec
• Management:
  • Local: WebGUI, Aginet app (for end users)
  • Remote: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 (for service providers)
  • Aginet APP for end users (requires TP-Link ID and device binding)
  • Cloud: TP-Link Aginet Unified Cloud (TAUC)
• Security:
  • NAT Firewall
  • Access Control
  • MAC/IP/URL Filtering
  • IP and MAC Address Binding
  • Defense against DoS attacks (including SYN Flooding and Ping of Death)
• Advanced Functions:
  • Parental Controls
  • Network Address Translation (NAT)
  • Port Mapping (Grouping)
  • Static Routing
  • DNS Relay
  • DDNS
  • IGMP V1/V2/V3
• Protocols: IPv4, IPv6
• VPN Server: PPTP VPN, IPSec VPN, OpenVPN

Others

• Package Contents:
  • WiFi6 GPON Router XX230v
  • RJ45 Ethernet Cable
  • Power Adapter
  • Quick Installation Guide
• System Requirements:
  • Operating Systems: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX, or Linux
  • Browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browsers
  • Subscription with an Internet Service Provider (for Internet access)
• Environment:
  • Operating Temperature: 0℃–40℃ (32℉–104℉)
  • Storage Temperature: -40℃–60℃ (-40℉–140℉)
  • Operating Humidity: 10%–90% non-condensing
  • Storage Humidity: 5%–90% non-condensing
